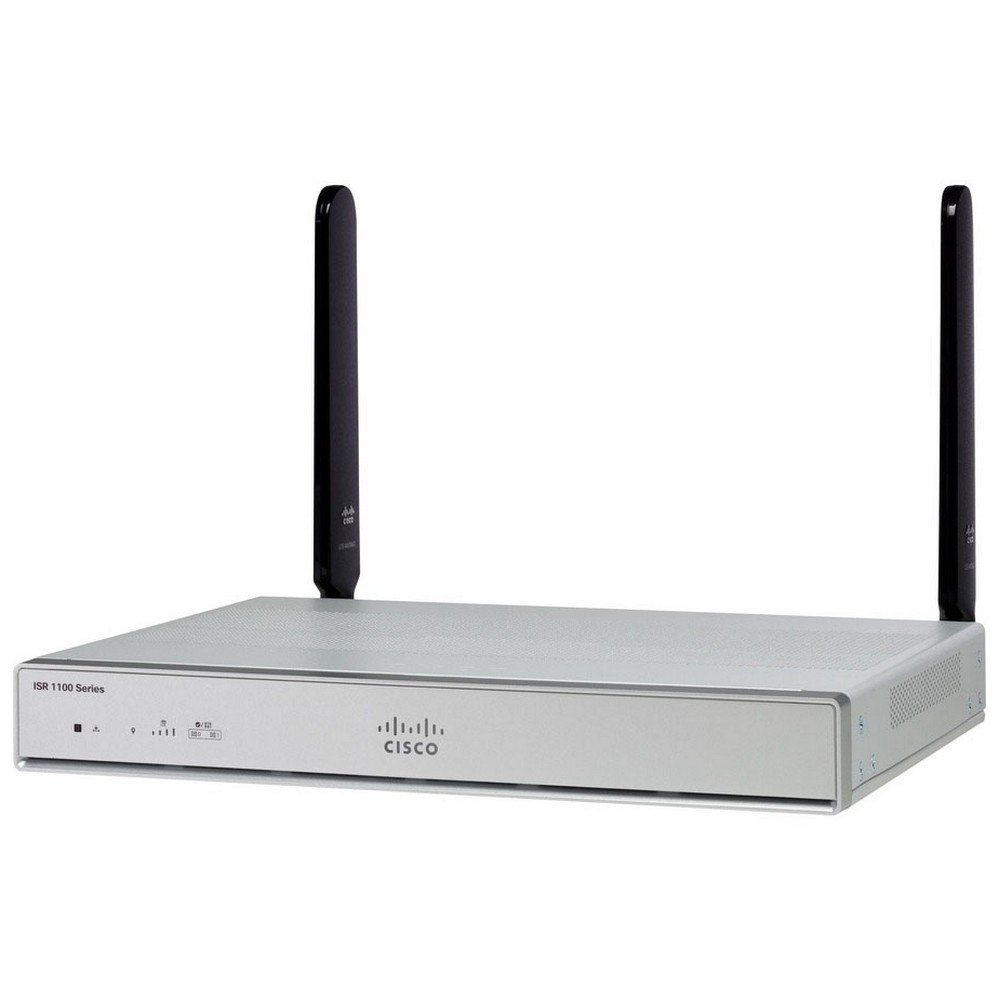

Cisco 1100 Series Router

Specs

• Contents

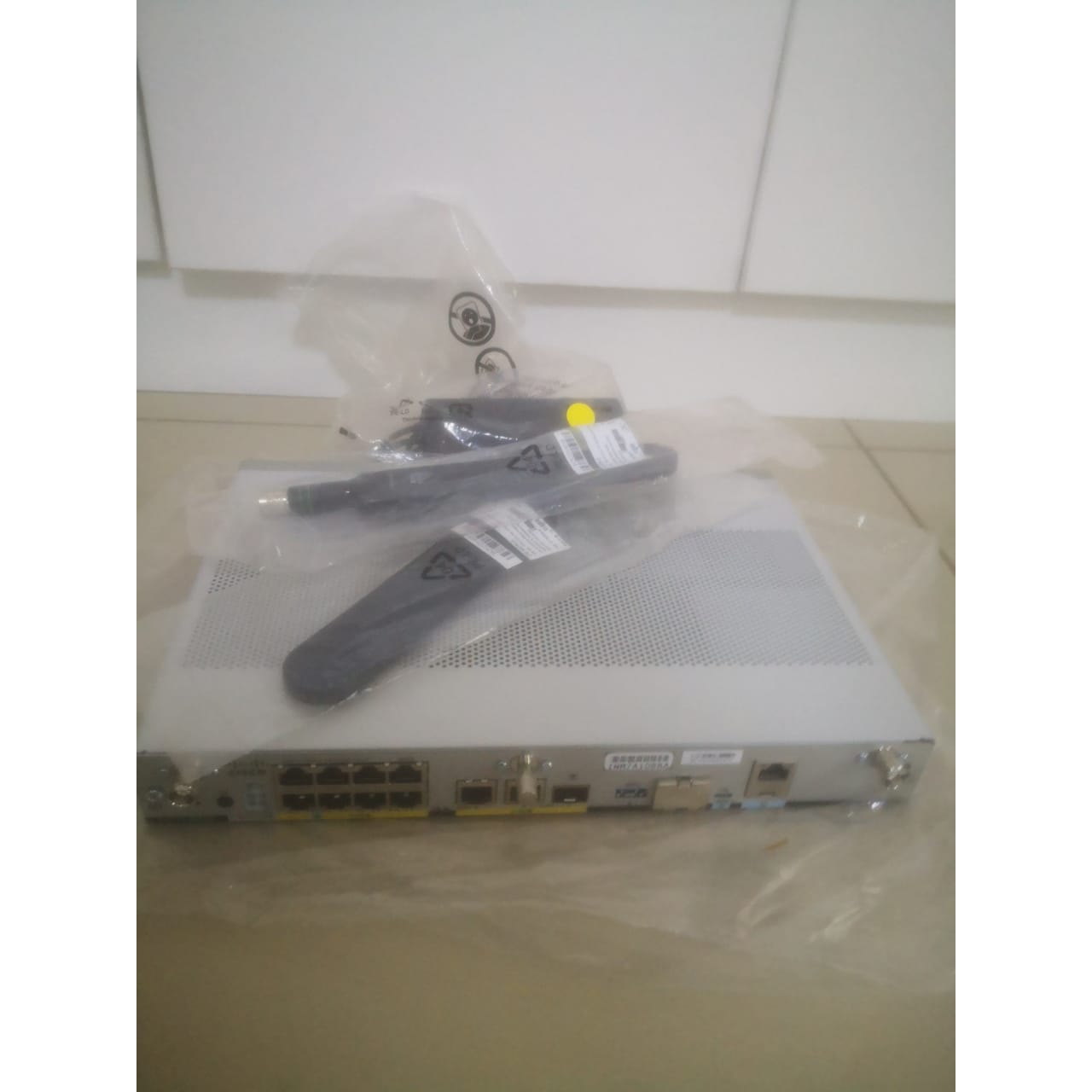

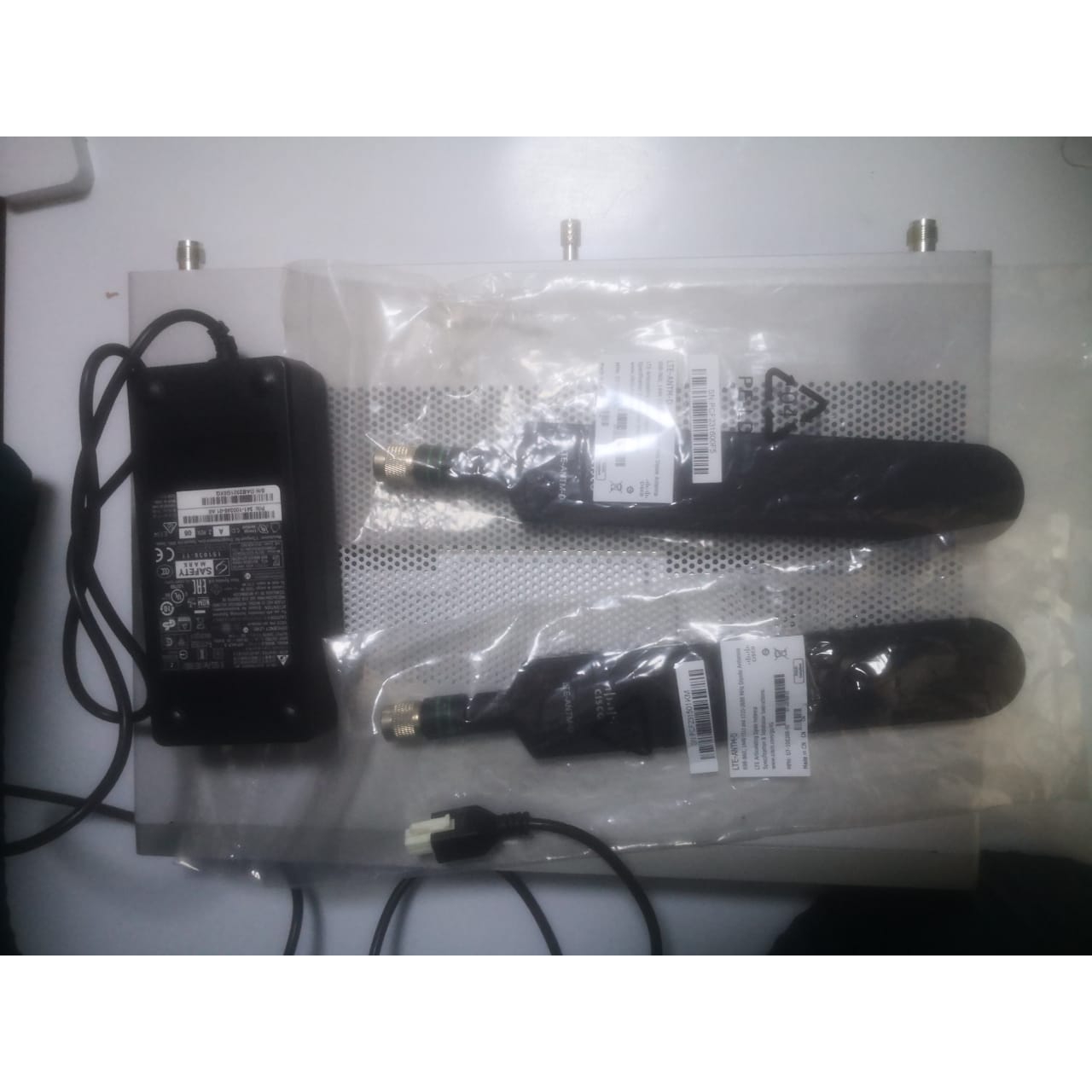

  Router, (2) antennas, rubber feet, documentation
• General
  Color: Gray
• General Information

  Throughput: ISR 1100 can provide encrypted traffic performance greater than 350 Mbps

  Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point

• Memory
  Flash Memory Installed Size: 4GB

  RAM (installed): 4GB
• Memory Notes
  4GB fixed DRAM
  4GB fixed Flash
• Operating System
  OS Provided: Cisco IOS XE Universal
• Physical Dimensions
  1.75″h x 12.7″w x 9″d

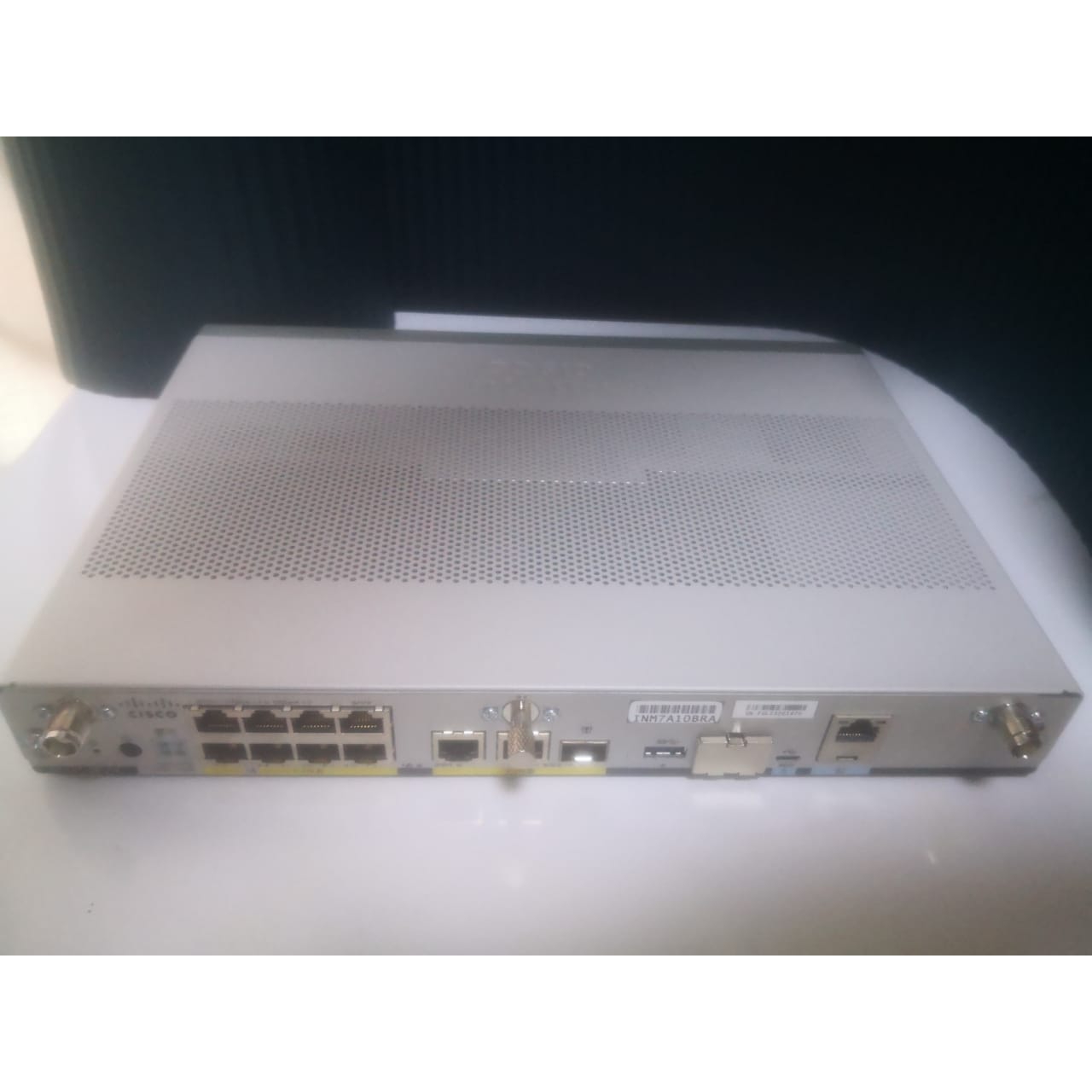

• Ports/Connectors
  (8) GE LAN (4 PoE, 2 PoE+)
  (1) GbE WAN
  (1) GbE/SFP combo WAN
  (1) integrated USB 3.0 console
• Power Notes
  AC input voltage: Universal 100 to 240 VAC
  Frequency: 50 to 60 Hz
  Maximum output power: 66W (default)
  Output voltages: 12 VDC
  External output voltage: 48 VDCOptional PoE and PoE+:
  Single 150W power supply required for Cisco 1100-8P router

• Protocols
  Networking Protocol: Gigabit Ethernet

  Networking Protocol: PoE

  Networking Protocol: PoE+

  Remote Management Protocol: SNMP

  Remote Management Protocol: RMON

  Remote Management Protocol: SYSLOG

  Remote Management Protocol: CLI

  Remote Management Protocol: Telnet

  Routing Protocol: HSRP

  Routing Protocol: MPLS

  Routing Protocol: PIM-SM

  Routing Protocol: Policy-based routing (PBR)

  Routing Protocol: RIP-1

  Routing Protocol: RSVP

  Routing Protocol: VRRP

  Routing Protocol: BGP

  Routing Protocol: Bidirectional Forwarding Detection (BFD)

  Routing Protocol: EIGRP

  Routing Protocol: Static IP routing

  Routing Protocol: DVMRP

  Routing Protocol: GRE

  Routing Protocol: IGMPv3

  Routing Protocol: IS-IS

  Routing Protocol: OSPF

  Routing Protocol: PIM-SSM

  Routing Protocol: RIP-2

  Transport Protocol: IPSec

  Transport Protocol: L2TPv3

  Transport Protocol: PPPoE

  Transport Protocol: DHCP
