Description

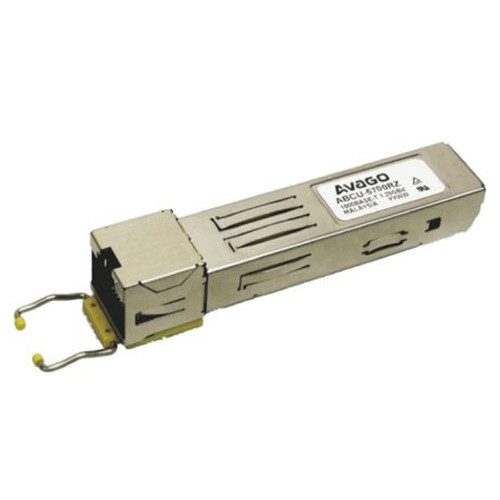

The ABCU-5710RZ and ABCU-5700RZ electrical transceivers from Avago Technologies offer full-duplex throughput of 1000 Mbps by transporting data over shielded and unshielded twisted pair category 5 cable with 5-level PAM (Pulse Amplitude Modulation) signals. The ABCU-5710RZ and ABCU-5700RZ differ only in handling of RX_LOS signal functions, as explained further on the following pages.

The Avago Technologies 1000BASE-T module takes signals from both the twisted pair category 5 cable and the SerDes interface. Pin count overhead between the MAC and the PHY is minimized, and Gigabit Ethernet operation is achieved with maximum space savings.

Features

• RoHS-6 Compliant (see Table 1)
• Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports
• Compatible with IEEE 802.3:2000
• Custom RJ-45 connector with integrated magnetics
• Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
• Low power, high performance 1.25 Gbd SerDes integrated in module
• Single +3.3 V power supply operation
• Auto-negotiation per IEEE 802.3:2000 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
• Compatible to both shielded and unshielded twisted pair category 5 cable
• Two configurations: ABCU-5700RZ: RX_LOS enabled & ABCU-5710RZ: RX_LOS disabled
• Rated for Commercial Temperature applications (0° – 70° C)

Applications

• Switch to switch interface
• Switched backplane applications
• File server interface
